Product Description

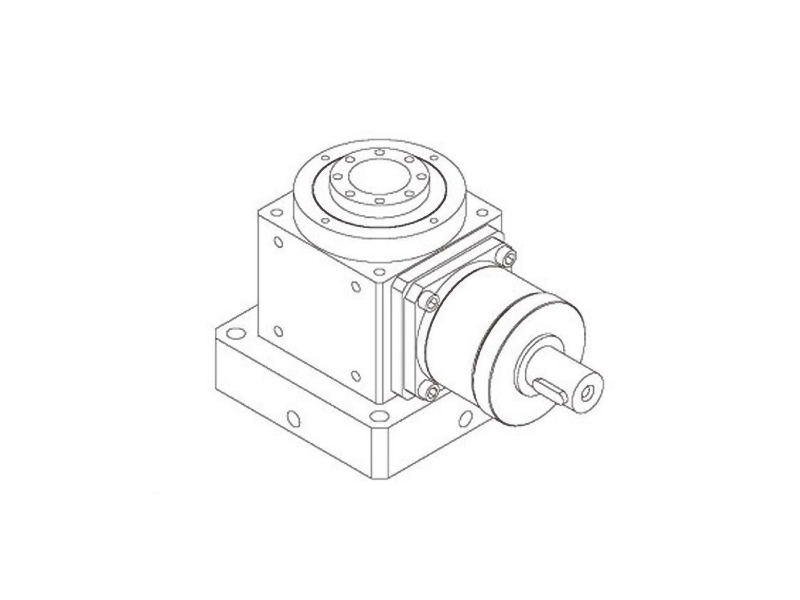

AAT-BS multi-axis screw lifting angle reducer:
1. High strength: 90 degree type, high-precision spiral bevel gear, using nickel-chromium alloy steel SCM415 HRC60 degree
2. High efficiency: high-efficiency planetary structure combined with precision spiral bevel gear structure.
3. High rigidity: This gearbox has excellent rigid structure and is supported by double cone bearings, which is particularly suitable for occasions with large load changes at the output end.
4. Various output shaft types, including single output shaft type, double output shaft type, hollow shaft type, hollow flange type, hollow shaft tapered urgent type, linear screw type, linear thread type
5. Reduction ratio: single stage 1:3~1:10 double stage: 1:12~12:100
6. Small size, space saving: rack size 55MM~220MM
7. Output torque: 15NM~1600NM, spiral bevel gear module M1.0~M6.0
8. Easy installation: can be installed in 5 directions
9. Applicable capacity: 50W~15KW
AAT-BS multi-axis screw lifting angle reducer plays an important role in industrial machinery and equipment. It is widely used, mainly due to its unique structure and functional advantages. Corner reducers, especially corner planetary reducers, can save a lot of space during installation because the motor input shaft and the reducer output shaft are at a 90-degree right angle, and the installation angle can be installed at 360 degrees without dead angles, which is very flexible. This type of reducer is usually used in high-precision fields such as precision machine tools, military equipment, metallurgical equipment, wind power generation equipment, chemical equipment, solar energy, industrial robots, conveying equipment, engineering machinery, textile equipment, packaging equipment, etc.
The advantages of AAT-BS multi-axis screw lifting angle planetary reducer include compact structure, high efficiency, high rigidity and the ability to withstand high loads. These advantages make corner planetary reducers widely used in some applications with high requirements for precision and reliability. For example, in the fields of mechanical manufacturing, automation, transportation, etc., corner planetary reducers have become an indispensable part. In practical applications, it is very important to choose a suitable corner planetary reducer, and many factors need to be considered, such as torque requirements, input-output speed ratio, working environment, etc., to ensure the efficient and reliable operation of mechanical equipment.
