Product Description

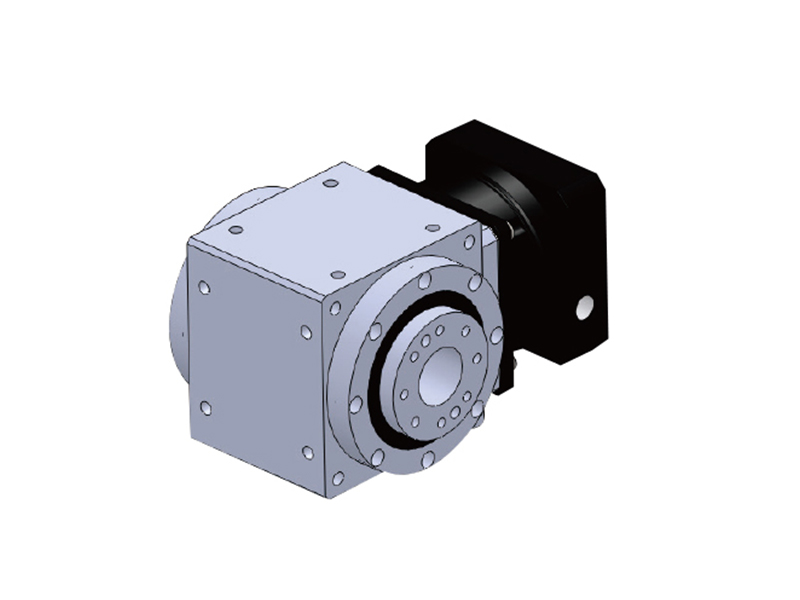

AATM-RF-K hollow turntable flange steering gear with keyway input:
1. Shell: cast with high rigidity FC-25 cast iron.
2. Gear: made of high-quality high-purity alloy steel 50CrMnT, carburized, quenched and ground.
3. Spindle: made of high-quality high-purity alloy steel 40Cr, quenched and tempered, with strong load-bearing capacity.
4. Bearing: rolling tapered bearing, strong load-bearing capacity.
5. Oil seal: imported double lip oil seal, dustproof and oilproof.
AATM-RF-K hollow turntable flange steering gear with keyway input plays an important role in industrial machinery and equipment. It is widely used, mainly due to its unique structural and functional advantages. Angle reducers, especially angle planetary reducers, can save a lot of space during installation because the motor input shaft and the reducer output shaft are at a right angle of 90 degrees, and the installation angle can be installed at 360 degrees without dead angles, which is very flexible. This type of reducer is usually used in high-precision fields such as precision machine tools, military equipment, metallurgical equipment, wind power equipment, chemical equipment, solar energy, industrial robots, conveying equipment, engineering machinery, textile equipment, packaging equipment, etc.
The advantages of the AATM-RF-K keyway input hollow turntable flange steering gear include compact structure, high efficiency, high rigidity and the ability to withstand high loads. These advantages make the angle planetary reducer widely used in some applications with high requirements for precision and reliability. For example, in the fields of mechanical manufacturing, automation, transportation, etc., the angle planetary reducer has become an indispensable part. In practical applications, it is very important to choose a suitable angle planetary reducer. Many factors need to be considered, such as torque requirements, input-output speed ratio, working environment, etc., to ensure the efficient and reliable operation of mechanical equipment.
| Model No. | Stage | Ratio(i) | AATM080AS | AATM110AS | AATM135AS | AATM165AS | AATM165BS | AATM200BS |
| Rated Output Torque(Nm) | L1 | 2, 3,
5, 10 | 80 | 250 | 450 | 800 | * | * |
| 6 | 80 | 200 | 400 | 700 | 600 | 1000 |
| 8 | 85 | 250 | 450 | 800 | 660 | 1100 |
| 10 | 85 | 250 | 450 | 800 | 660 | 1100 |
Max. Output
Torque(Nm) | L1,L2 | 3~100 | 2.5 Times of Normal Output Torque |
Input
Speed(rpm) | L1,L2 | 3~100 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Standard Back-lash (arc-min) | L1 | 3~10 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
| L2 | 12~100 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 |
Precision
Backlash
B2(arc-min) | L1 | 3~10 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
| L2 | 12~100 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
Precision
Backlash
B1(arc-min) | L1 | 3~10 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
| L2 | 12~100 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 | ≤3 |
Precision
Backlash
B0(arc-min) | L1 | 3~10 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| L2 | 12~100 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
Max. Radial
Force(N) | L1,L2 | 3~100 | 3900 | 5500 | 9800 | 16500 | 16500 | 24100 |
Max. Axial
Force(N) | L1,L2 | 3~100 | 3900 | 5500 | 9800 | 16500 | 16500 | 24100 |
Efficiency
(%) | L1 | 3~10 | 90% |
| L2 | 12~100 | 85% |
| Weight(kg) | L1 | 3~10 | 7.8 | 4.3 | 20.8 | 35.5 | 28.5 | 40.5 |
| L2 | 12~100 | 9.2 | 6.3 | 24.3 | 40.5 | 31.2 | 48.5 |
Operating
Temp. | L1,L2 | 3~100 | -10℃~+80℃ |
| Lubrication | L1,L2 | 3~100 | COMPLEX HV2 |
Mounting
Position | L1,L2 | 3~100 | Any Direction |
Noise Level
(db) | L1,L2 | 3~100 | ≤68 | ≤68 | ≤68 | ≤70 | ≤70 | ≤72 |
