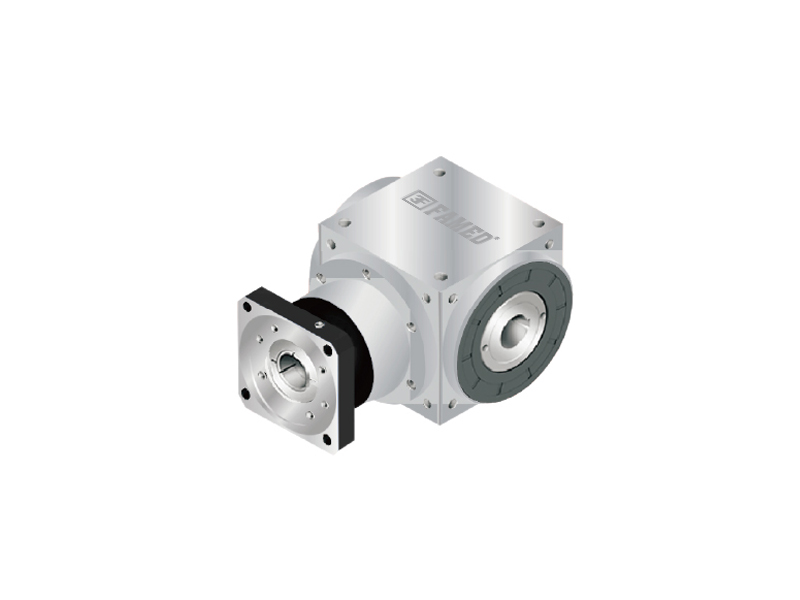

AT-FH HOLE OUTPUT FLANGE INPUT SPEED REDUCER

Large output torque

Easy for installation

High quality with reasonable price

Stable transmission and quiet operation

Smooth running and low noise

Made of high-quality aluminum alloy, light in weight and non-rusting

High torque up to 8000 Nm and high efficiency of 98%

Inquiry Now

Drawings Download

3D model download

Introduction

Specification Table

Download

Product Description

AT-FH hole output flange input reducer:

1. Large output torque

2. Easy installation

3. Reasonable price, good quality

4. Stable transmission, quiet operation

5. Smooth operation, low noise

6. Made of high-quality aluminum alloy, light weight, no rust

7. Torque up to 8000 Nm, efficiency up to 98%

AT-FH hole output flange input reducer plays an important role in industrial machinery and equipment, and its application is wide, mainly due to its unique structure and functional advantages. Corner reducers, especially corner planetary reducers, can save a lot of space during installation because the motor input shaft and the reducer output shaft are at a right angle of 90 degrees, and the installation angle can be installed at 360 degrees without dead angles, which is very flexible. This kind of reducer is usually used in high-precision fields such as precision machine tools, military equipment, metallurgical equipment, wind power generation equipment, chemical equipment, solar energy, industrial robots, conveying equipment, engineering machinery, textile equipment, packaging equipment, etc.

The advantages of AT-FH hole output flange input reducer include compact structure, high efficiency, high rigidity and ability to withstand high loads. These advantages make the angle planetary reducer widely used in some applications that require high precision and reliability. For example, in the fields of mechanical manufacturing, automation, transportation, etc., the angle planetary reducer has become an indispensable part. In practical applications, it is very important to choose a suitable angle planetary reducer. Many factors need to be considered, such as torque requirements, input-output speed ratio, working environment, etc., to ensure the efficient and reliable operation of mechanical equipment.

Specification		Stages	Ratio	AT065 FH	AT075 FH	AT090 FH	AT110 FH	AT140 FH	AT170 FH	AT210 FH	AT240 FH	AT280 FH
Rated outputtorque	Nm	1	1	25	45	78	150	360	585	1300	2150	3200
			1.5	25	45	78	150	360	585	1300	2150	3200
			2	24	42	68	150	330	544	1220	2010	3050
			3	18	33	54	120	270	450	1020	1650	2850
			4	13	28	48	100	224	376	860	1410	2300
			5	12	25	40	85	196	320	740	1210	2000
		2	7	12	12	33	91	91	91	195	358	358
			10	24	28	68	150	208	208	430	846	846
			15	18	33	54	120	270	312	645	1269	1269
			20	13	28	48	100	224	376	860	1410	1692
			25	12	25	40	85	196	320	740	1210	2000
			35	12	25	40	85	196	320	740	1210	1790
			50	12	25	40	85	196	320	740	1210	1465
		3	75	*	*	*	120	210	312	585	1269	1269
			100	*	*	*	100	224	376	780	1410	1692
			125	*	*	*	85	196	320	740	1210	2000
			150	*	*	*	120	135	312	390	975	975
			200	*	*	*	100	180	376	520	1300	1300
			250	*	*	*	85	196	320	650	1210	1625
			350	*	*	*	85	196	320	740	1210	1790
			500	*	*	*	85	196	320	740	1210	1465
Max.output torque	Nm	1,2,3	1~500	1.5 Times of Rated Output Torque
Max.input speed	rpm	1	1~5	7500	6500	5500	4500	3500	3000	2200	2000	1700
		2	7~50	8000	8000	6000	6000	6000	6000	4800	3600	3600
		3	75~500	*	*	*	8000	8000	6000	6000	6000	6000
Backlash	arcmin	1	1~5	≤6	≤6	≤6	≤6	≤6	≤6	≤6	≤6	≤6
		2	7~50	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8
		3	75~500	*	*	*	≤10	≤10	≤10	≤10	≤10	≤10
Radial force Output shaft d2	N	1,2,3	1~500	900	1100	1700	2700	4800	6600	11500	16000	18000
Axial force Output shaft d2	N	1,2,3	1~500	450	550	850	1350	2400	3300	5750	8500	9000
Service life	hr	1,2,3	1~500	20000
Efficiency	%	1	1~5	≥98%
Efficiency	%	2,3	7~500	≥94%
Operation Temp	℃	1,2,3	1~500	minus10℃~90℃
Lubrication				Synthetic Grease
Noise level	dB(A)	1,2,3	1~500	≤71	≤72	≤76	≤77	≤78	≤79	≤81	≤83	≤84

Moment of inertia

Specification		Stages	Ratio	AT065 FH	AT075 FH	AT090 FH	AT110 FH	AT140 FH	AT170 FH	AT210 FH	AT240 FH	AT280 FH
Moment of inertia	kg.cm2	1	1	0.51	1.3	3.14	7.62	23.54	59.09	195.96	365.38	787.63
			1.5	0.46	1.15	2.8	6.65	19.34	49.38	156.02	279.62	584.28
			2	0.44	1.1	2.68	6.23	17.72	45.44	140.8	245.78	500.26
			3	0.43	1.09	2.64	6.08	17.16	44.11	135.51	233.75	471.56
			4	0.43	1.08	2.63	6.05	17.03	43.79	134.14	230.77	464.76
			5	0.43	1.08	2.63	6.04	16.99	43.69	133.71	229.71	462.08
		2	7	0.15	0.15	0.5	2.79	2.79	2.79	9.91	29.26	29.26
			10	0.15	0.15	0.5	2.8	2.8	2.8	9.96	29.43	29.43
			15	0.15	0.15	0.5	2.8	2.8	2.8	9.96	29.43	29.43
			20	0.15	0.15	0.5	2.8	2.8	2.8	9.96	29.43	29.43
			25	0.15	0.15	0.5	2.8	2.8	2.8	9.96	29.43	29.43
			35	0.15	0.15	0.5	2.79	2.79	2.79	9.91	29.26	29.26
			50	0.15	0.15	0.5	2.79	2.79	2.79	9.89	29.2	29.2
		3	75	*	*	*	2.8	2.8	2.8	9.96	29.43	29.43
			100	*	*	*	2.8	2.8	2.8	9.96	29.43	29.43
			125	*	*	*	2.8	2.8	2.8	9.96	29.43	29.43
			150	*	*	*	2.79	2.79	2.79	9.89	29.2	29.2
			200	*	*	*	2.79	2.79	2.79	9.89	29.2	29.2
			250	*	*	*	2.79	2.79	2.79	9.89	29.2	29.2
			350	*	*	*	2.79	2.79	2.79	9.89	29.2	29.2
			500	*	*	*	2.79	2.79	2.79	9.89	29.2	29.2
