Linear bearing

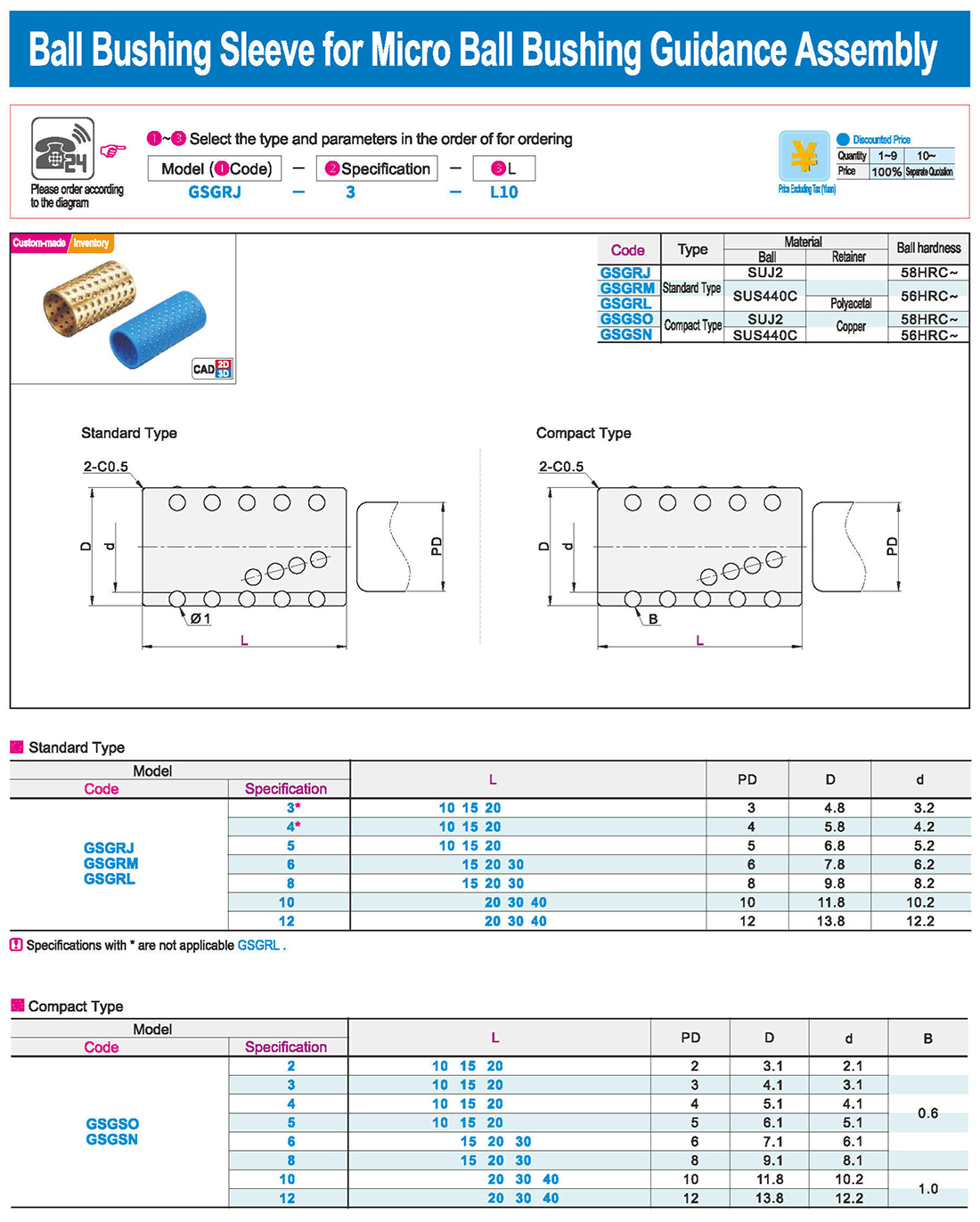

Ball Bushing Sleeve for Micro Ball Bushing Guidance Assembly

It is a low-cost linear motion system for use with unlimited travel and cylindrical shafts. Because the bearing ball is in point contact with the shaft, the load is small. The steel ball rotates with very little friction resistance and thus can be obtainedSmooth motion with high precision.

Introduction

Specification Table

Download

Product Introduction of Linear Bearings

Linear bearings are a low-cost linear motion system designed to be used in conjunction with cylindrical shafts for infinite travel. Since the load-bearing balls contact the shaft at a single point, the load capacity is relatively small. The steel balls rotate with minimal friction resistance, resulting in highly precise and smooth motion.

Applications and Characteristics

Applications: Linear bearings are increasingly used in various industries, including electronics, food machinery, packaging machinery, medical machinery, printing machinery, textile machinery, machinery, instrumentation, robotics, tool machinery, CNC machine tools, and automobiles, among others.

Characteristics: Low noise, low friction, high precision, and long service life. The point contact between the balls and the linear shaft results in minimal friction and high motion precision.
