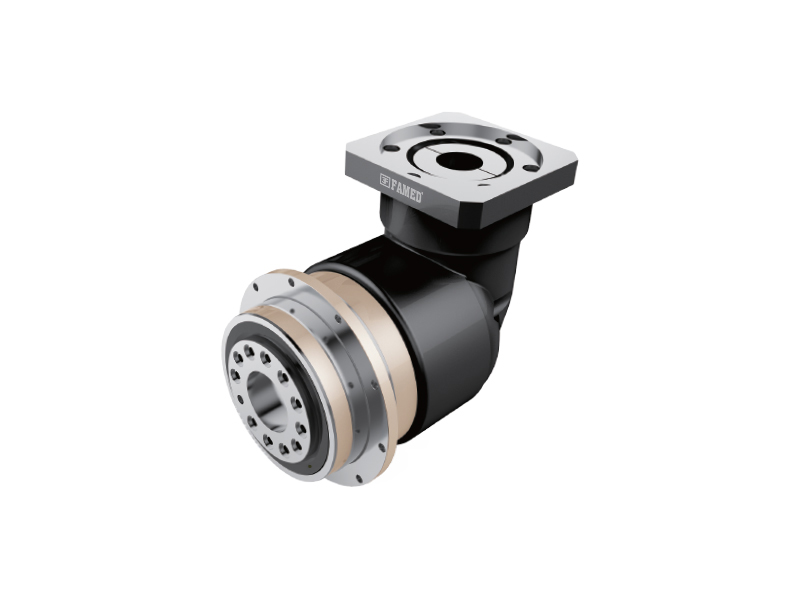

EVT High Precision Flange Output Right Angle Planetary Gearbox

Space-savingThe straight cross reducer uses spiral bevel gear.Theinstallation of the motor can achieve 90 degree bending andsave the installation space

High rigidity & torqueThe use of integral needle roller bearings greatly improvesthe rigidity and torque

Connector and shaft sleeve modeit can be installed on any motor in the worid

No grease leakageThe use of grease with high viscosity which is not easy toseparate effectively prevents the grease leakage

Convenient maintenanceNo need to replace the grease in the product life period and the installation is more convenient

Inquiry Now

Drawings Download

3D model download

Introduction

Specification Table

Download

Product Description

EVT high-precision flange output right-angle planetary gearbox:

1. Save space The right-angle reducer adopts spiral bevel gears, and the motor installation can achieve 90-degree bending, saving installation space

2. High rigidity and torque The use of integral needle bearings greatly improves rigidity and torque

3. The connector and sleeve mode can be installed on any motor in the world

4. No grease leakage Use high-viscosity, non-separable grease to effectively prevent grease leakage

5. Easy maintenance No need to replace grease during the product life, more convenient installation

EVT high-precision flange output right-angle planetary gearbox is suitable for a variety of industries and applications, including: printing and paper processing; CNC machine tool processing equipment; military and aerospace equipment; semiconductor wafer manufacturing; coating and film processing; high-speed electronic assembly; injection molding, packaging; CNC plasma flame cutting equipment; automated packaging equipment, printing machinery.

Model No.	Unit	Stage	Ratio	PADR047	PADR064	PADR090	PADR110	PADR140	PADR200	PADR255
Rated Output Torque	Nm	1	4	19	50	133	278	555	1050	1700
			5	22	60	160	330	650	1200	2000
			7	19	50	140	300	550	1100	1800
			10	14	40	100	230	450	900	1500
		2	20	19	50	133	278	555	1050	1700
			25	22	60	160	330	650	1200	2000
			35	19	50	140	300	550	1100	1800
			40	19	45	120	260	500	1000	1600
			50	22	60	160	330	650	1200	2000
			70	19	50	140	300	550	1100	1800
			100	14	40	100	230	450	900	1500
Max. Output Torque	Nm	1,2	4-100	3 Times of Normal Output Torque
Rated Input Speed	Rpm	1,2	4-100	5000	5000	4000	4000	3000	3000	2000
Max. Input Speed	Rpm	1,2	4-100	10000	10000	8000	8000	6000	6000	4000
Micro Backlash P0	Arcmin	1	4-10	≤1	≤1	≤1	≤1	≤1	≤1	≤1
		2	12-100	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Precisiom Backlash P1	Arcmin	1	4-10	≤3	≤3	≤3	≤3	≤3	≤3	≤3
		2	20-100	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Standard Backlash P2	Arcmin	1	4-10	≤6	≤6	≤6	≤6	≤6	≤6	≤6
		2	20-100	≤8	≤8	≤8	≤8	≤8	≤8	≤8
Torsional Rigidity	Nm/arcmin	1,2	3-100	8	13	30	80	150	450	1010
Max. Radial Force	N	1,2	3-200	43	125	235	430	1300	3064	5900
Max. Axial Force	N	1,2	3-200	990	1050	2850	2990	10590	16660	29430
Service Life	Hr	1,2	3-200	22000hrs
Efficiency	%	1	3-20	≥97%
		2	25-200	≥94%
Weight	Kg	1	3-20	0.7	1.3	3.2	5.8	12.3	33	57.9
		2	25-200	1	1.5	4.1	7.6	16.8	38	72.6
Operating Temperature	℃	1,2	3-200	（-15℃~+90℃）
Lubrication		1,2	3-200	Synthetic Grease
Protection Class		1,2	3-200	IP65
Mounting Position		1,2	3-200	Any Direction
Noise Level	dB(A)	1,2	3-200	≤58	≤59	≤62	≤65	≤68	≤69	≤70

Moment of Inertia

Model No.	Unit	Stage	Ratio	PAD047	PAD064	PAD090	PAD110	PAD140	PAD200	PAD255
Moment of Inertia	kg.cm2	1	4	0.03	0.14	0.48	2.74	7.54	23.67	54.37
			5	0.03	0.13	0.47	2.71	7.42	23.29	53.27
			7	0.03	0.13	0.45	2.62	7.14	22.48	50.97
			10	0.03	0.13	0.44	2.57	7.03	22.51	50.56
		2	12-40	0.03	0.03	0.13	0.47	2.71	7.42	23.29
			50-100	0.03	0.03	0.13	0.44	2.57	7.03	22.51
