Oil-free Bushings

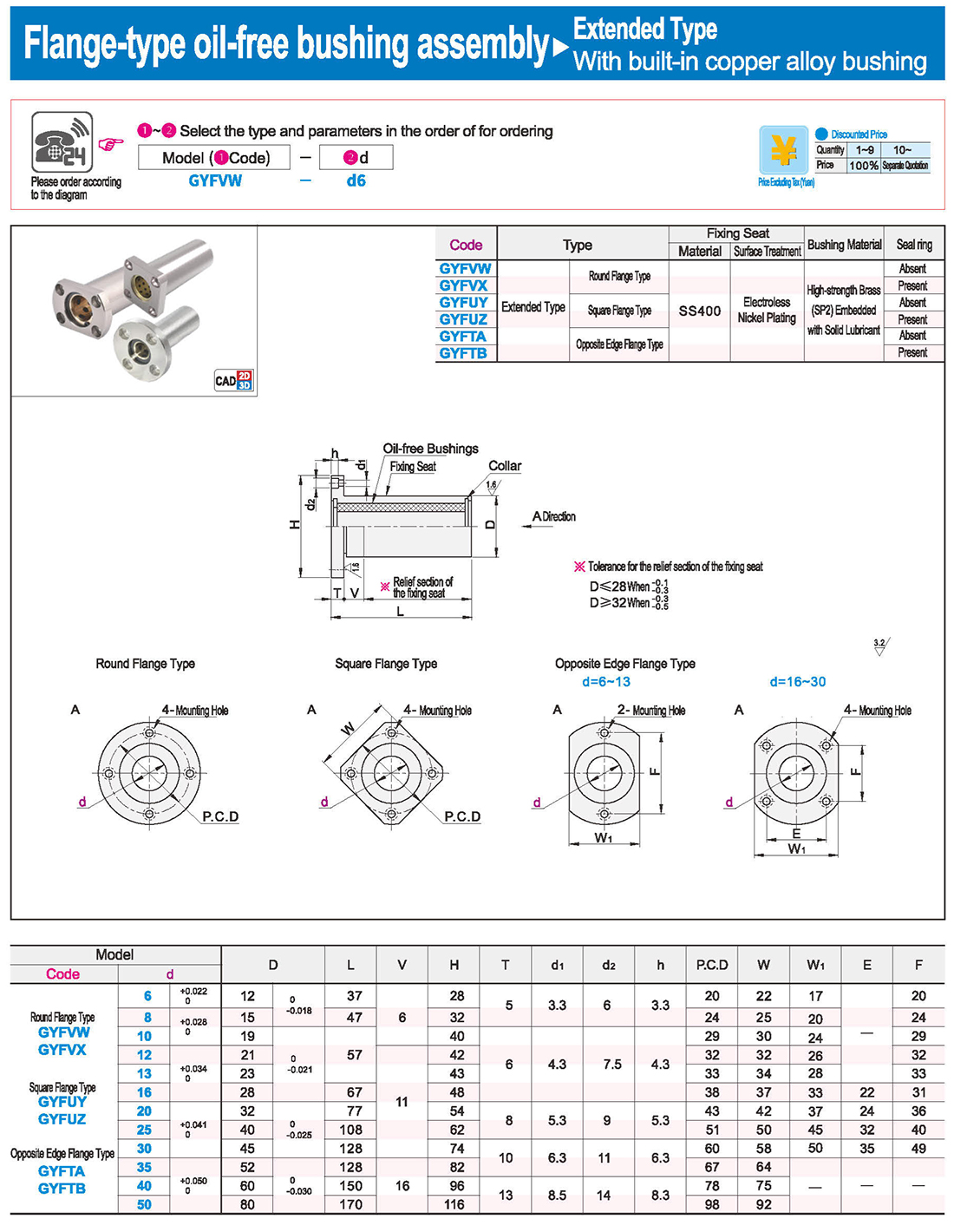

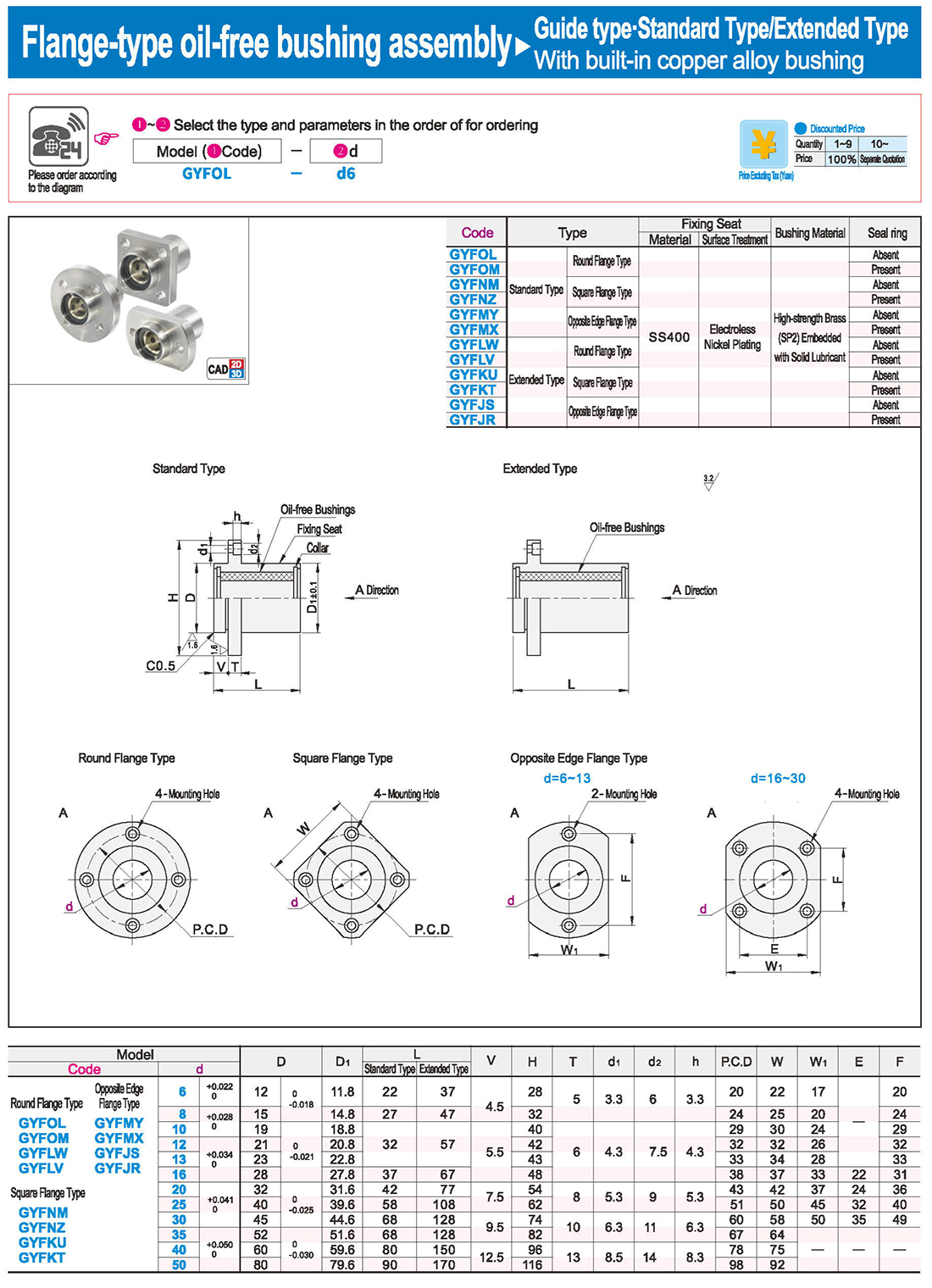

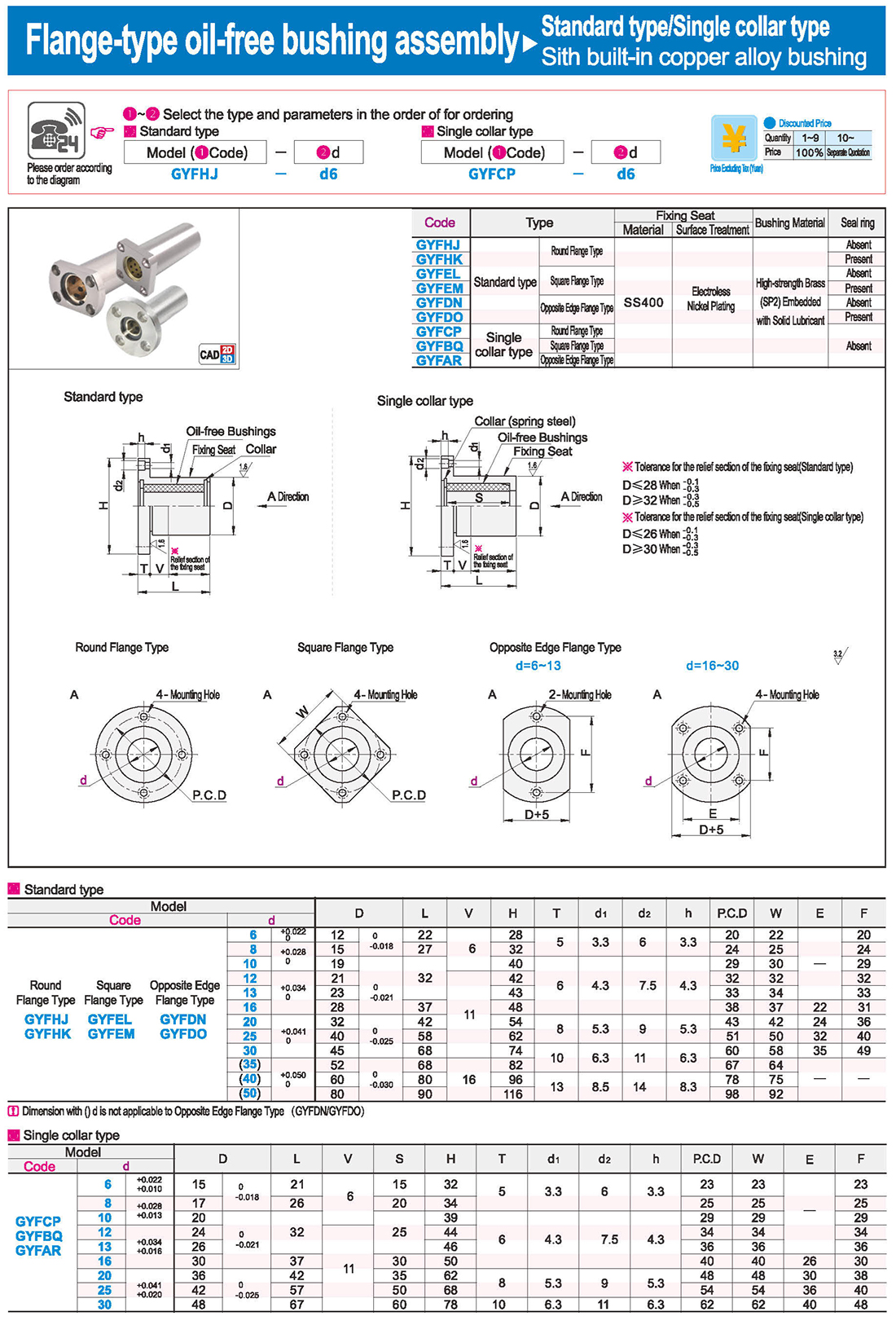

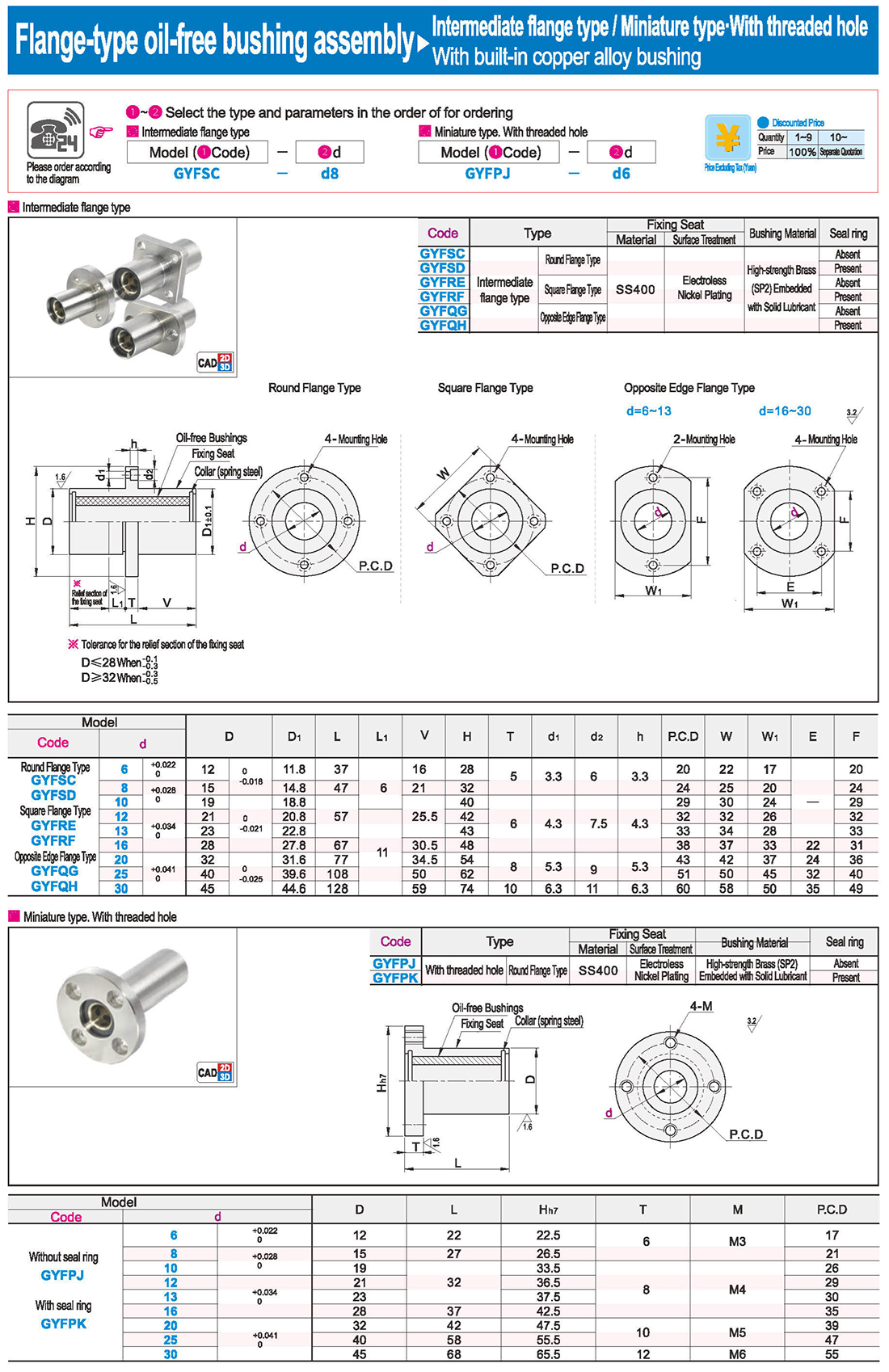

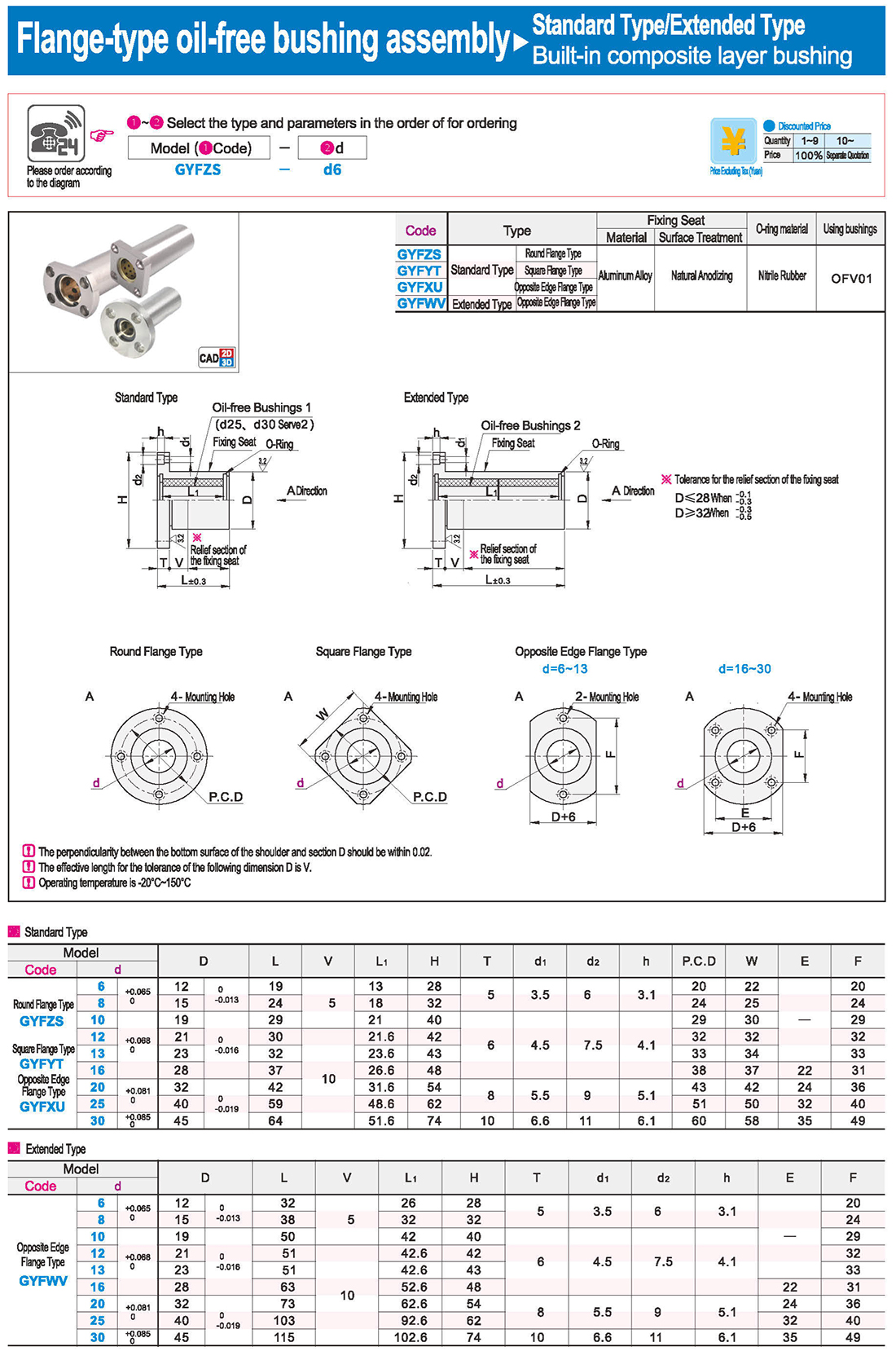

Flange-type oil-free bushing assembly

1.self-lubrication performanceOil-free bushing components have built-in lubricants that allow them to operate without the need for external oil supply or significantly reduce the number of times they are supplied when required. This self-lubricating design not only reduces the maintenance cost and workload, but also improves the operating efficiency of the equipment.2. Strong carrying capacityOil-free bushing assemblies have a higher load bearing capacity than conventional bearings and can withstand larger axial and radial loads. This enables oil-free bushing assemblies to perform well under heavy duty conditions and meet the needs of a wide range of high-load applications.

Introduction

Specification Table

Download

1.self-lubrication performance

Oil-free bushing components have built-in lubricants that allow them to operate without the need for external oil supply or significantly reduce the number of times they are supplied when required. This self-lubricating design not only reduces the maintenance cost and workload, but also improves the operating efficiency of the equipment.

2. Strong carrying capacity

Oil-free bushing assemblies have a higher load bearing capacity than conventional bearings and can withstand larger axial and radial loads. This enables oil-free bushing assemblies to perform well under heavy duty conditions and meet the needs of a wide range of high-load applications.

3. Strong temperature adaptability

Oil-free bushing components can work stably in both high and low temperature environments, showing good temperature resistance. This temperature adaptability allows oil-free bushing components to be used in a variety of harsh temperature conditions, improving the reliability and stability of the equipment.

4. Save space

The compact design and thin thickness of oil-free bushing components can save valuable space resources. This is especially important for mechanical equipment with limited space, which can improve the overall performance and efficiency of the equipment.
