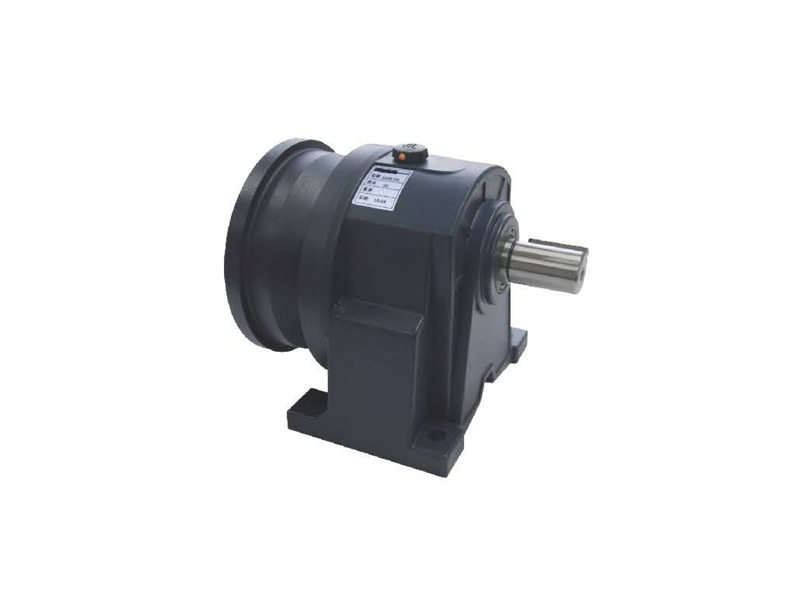

Horizontal flange gear reducer is a commonly used mechanical transmission device that combines the advantages of horizontal installation and flange connection, and is widely used in various industrial fields.
1、 Definition and Characteristics
Horizontal flange gear reducer, as the name suggests, refers to a gear reducer that adopts a horizontal installation method and transmits power through flange connection. Its characteristics mainly include:
Horizontal installation: The input and output shafts of the reducer are arranged horizontally, making it easy to connect with horizontally installed motors or other power sources, while also saving vertical space.
Flange connection: The output end adopts flange connection, which enables the reducer to be easily connected to other equipment or components, improving the overall integrity and stability of the system.
Compact structure: Horizontal flange gear reducers typically have a compact structural design that can provide efficient transmission performance in limited space.
High transmission efficiency: The gear pair undergoes precision machining and heat treatment, resulting in high transmission efficiency and ensuring smooth and reliable power transmission.
Strong load-bearing capacity: The reducer adopts high-strength materials and optimized structural design, which can withstand large radial and axial loads and is suitable for heavy-duty conditions.
2、 Working principle
The working principle of a horizontal flange gear reducer is similar to that of a general gear reducer. When the motor or other power source is connected to the input shaft of the gearbox through a coupling, the input shaft receives power and transmits it to the gear pair. The gear pair achieves the functions of reducing speed and increasing torque by meshing gears with different numbers of teeth. Finally, the power after deceleration is transmitted to the working machine through the output shaft and flange connection.
3、 Application scenarios
Horizontal flange gear reducers are widely used in various industrial fields, including but not limited to the following aspects:
Mining machinery equipment: In mining machinery equipment, horizontal flange gear reducers are often used to drive mining conveyors, hoists, ventilators, and other equipment, providing stable and reliable transmission devices for mining production.
In the industrial fields of power, chemical, and building materials, horizontal flange gear reducers are widely used in various conveying equipment, fans, pumps, and other machinery to achieve power transmission and deceleration.
In the field of agricultural machinery, horizontal flange gear reducers are used in tractors, harvesters, irrigation machinery, and other agricultural machinery to improve their work efficiency and operational accuracy.
Other application scenarios: In addition to the above application scenarios, horizontal flange gear reducers are also widely used in light industry, metallurgy, shipbuilding and other fields, as well as various sizes of machinery and equipment.
