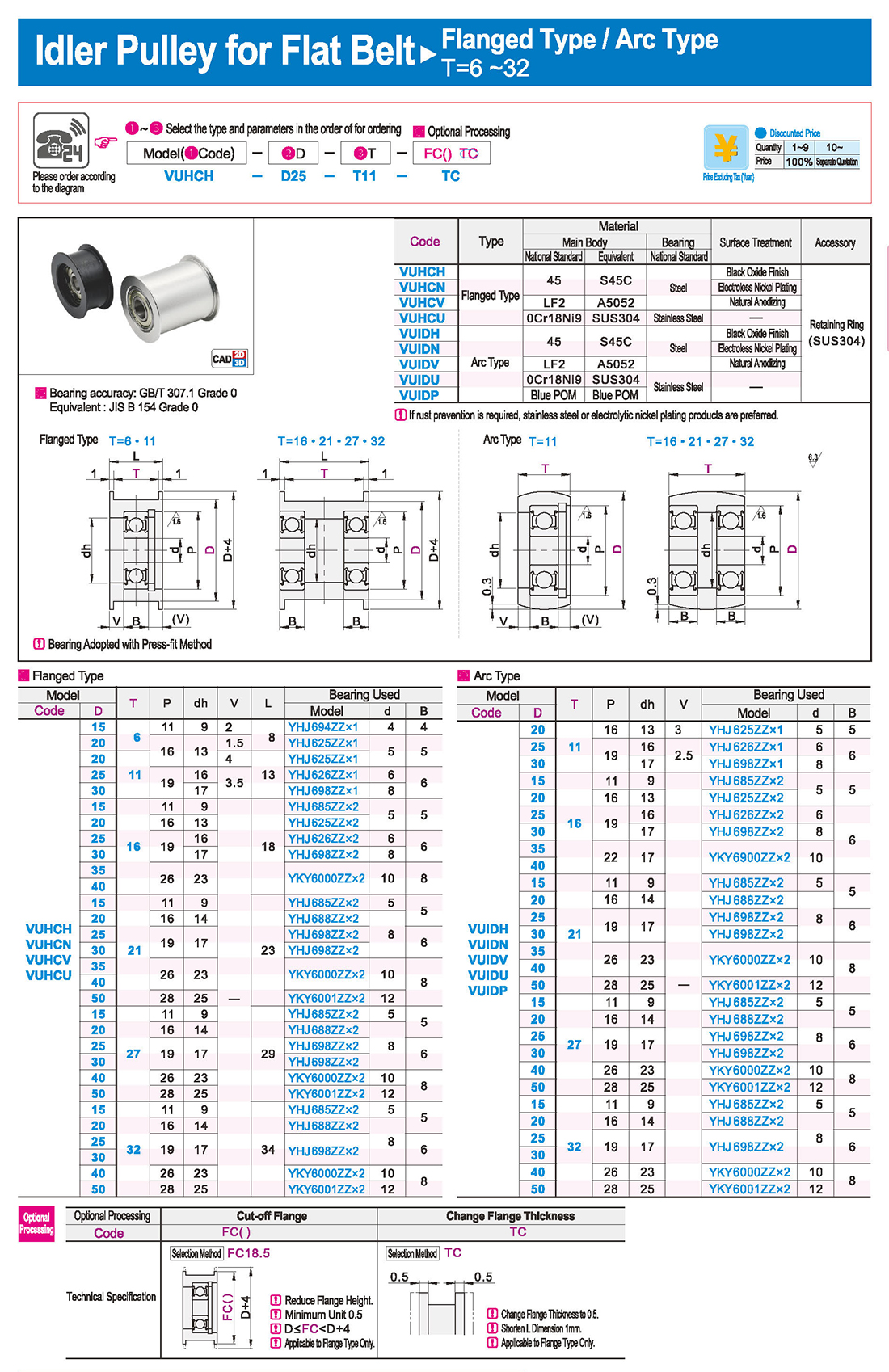

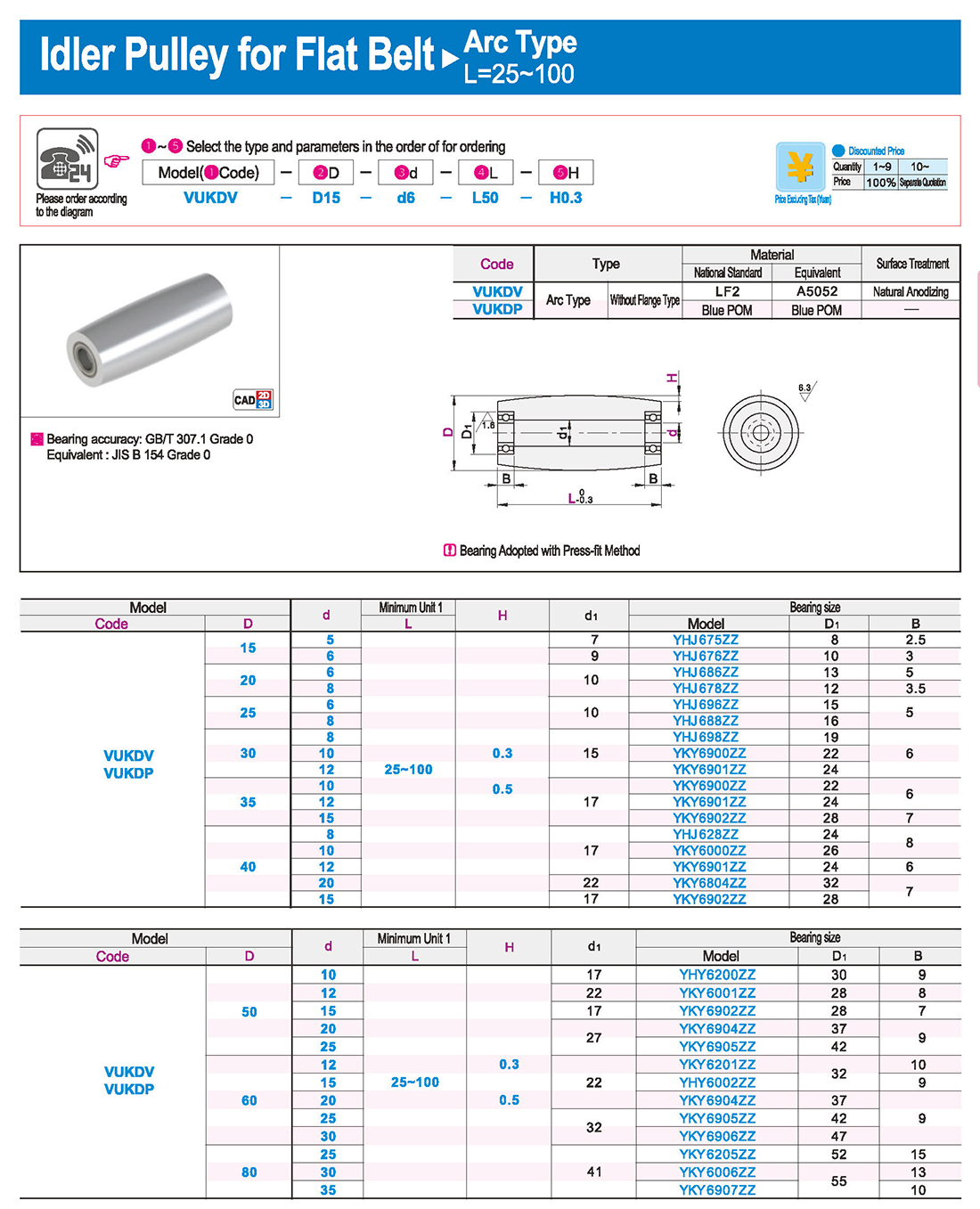

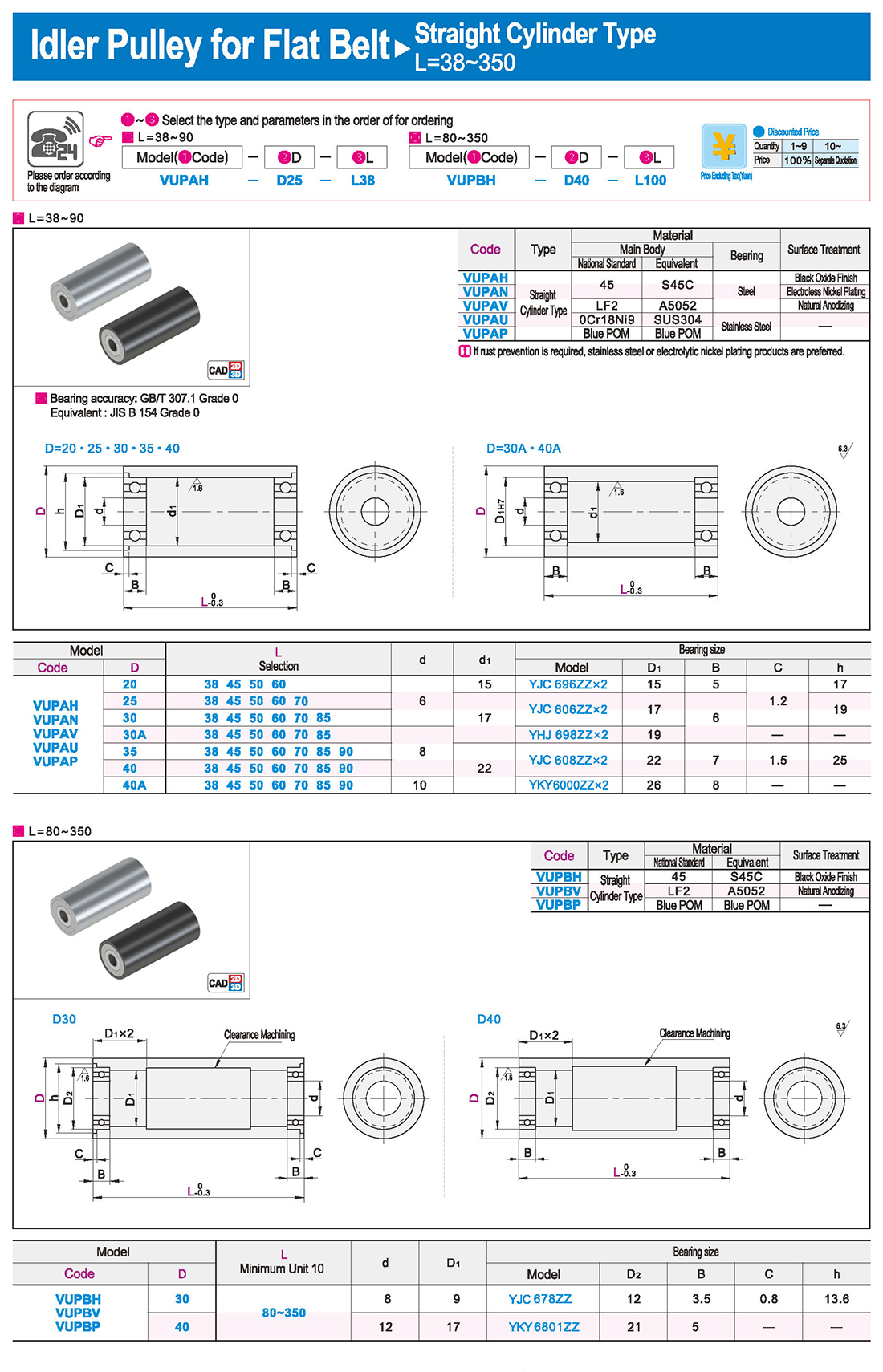

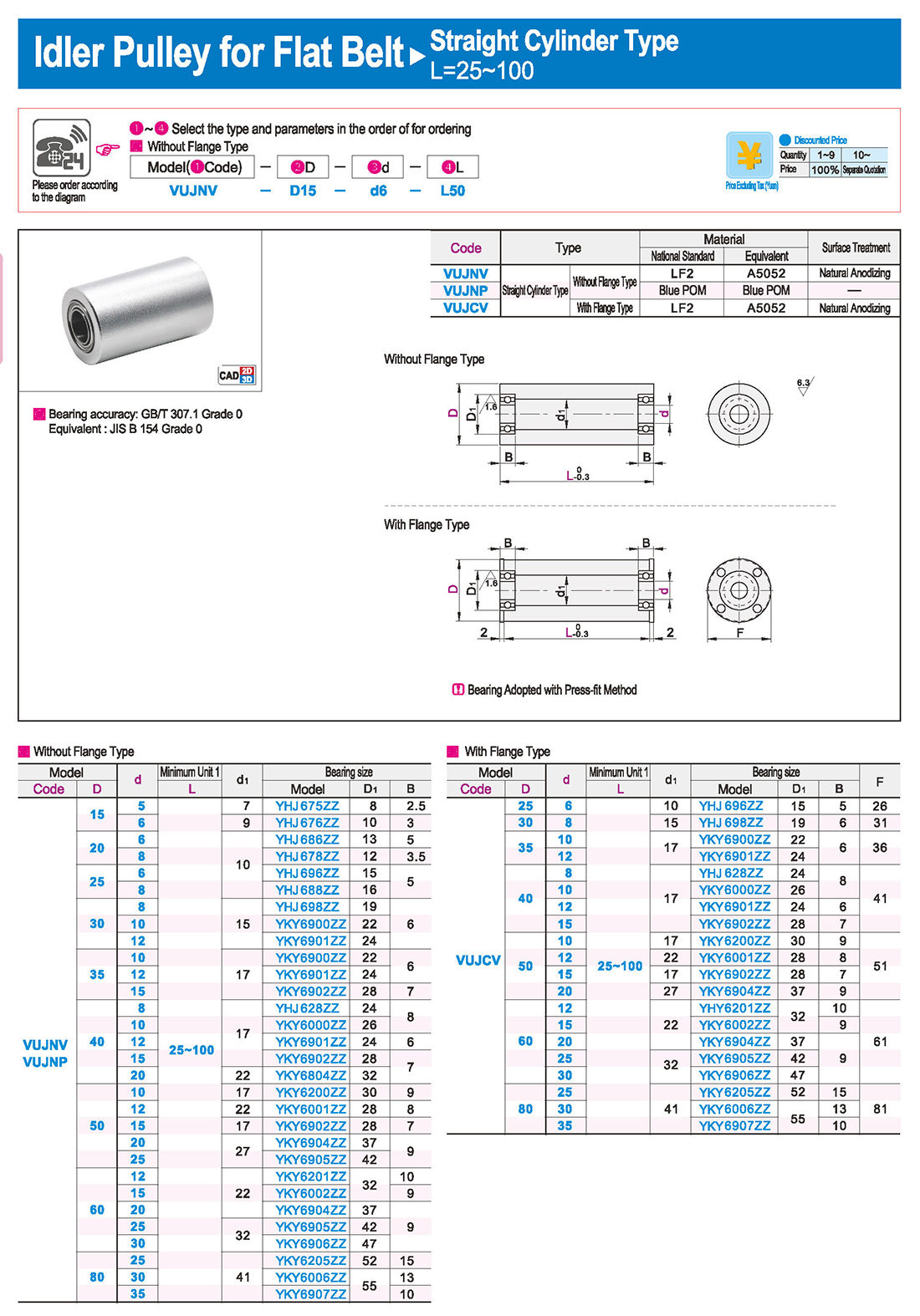

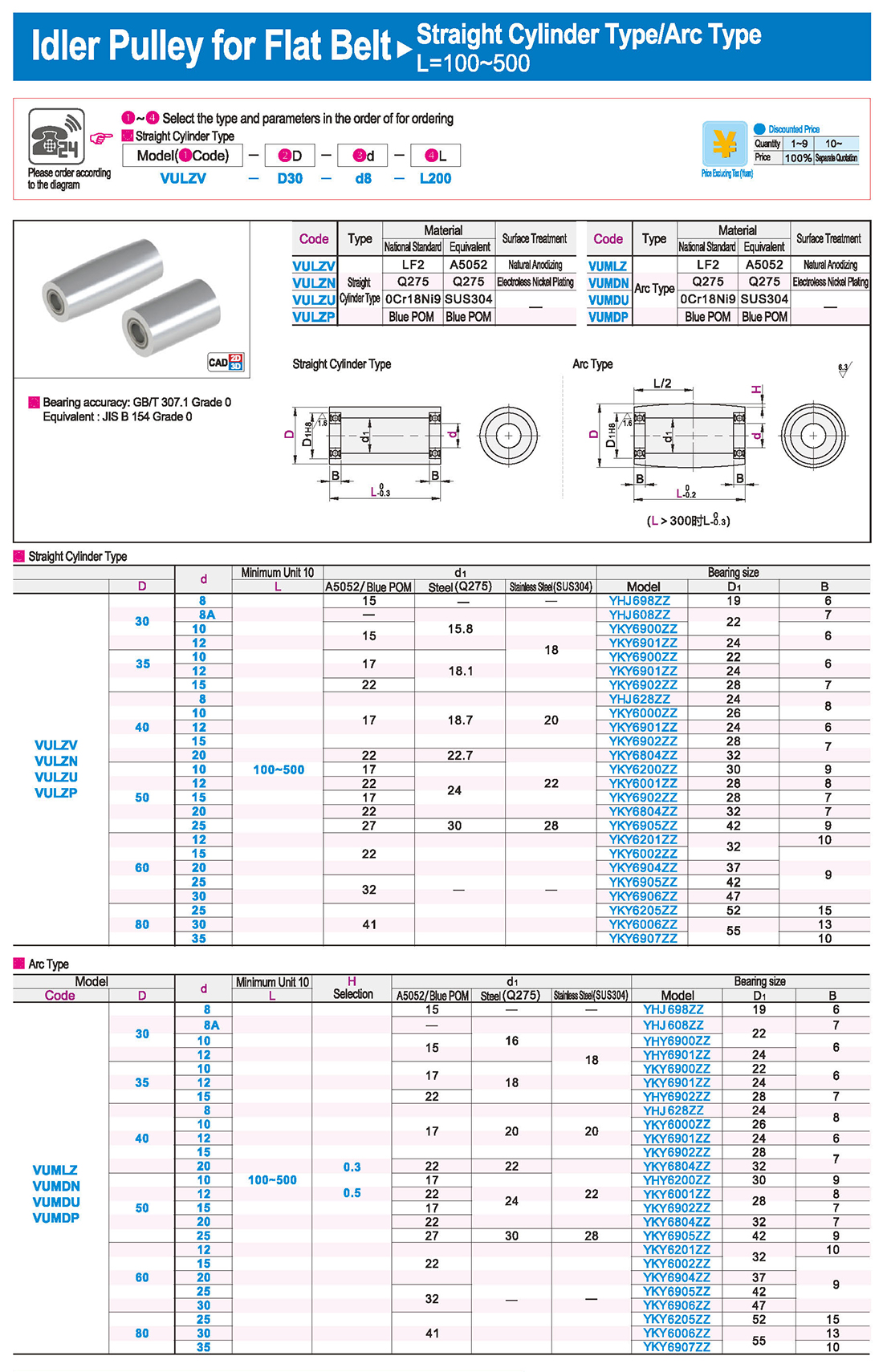

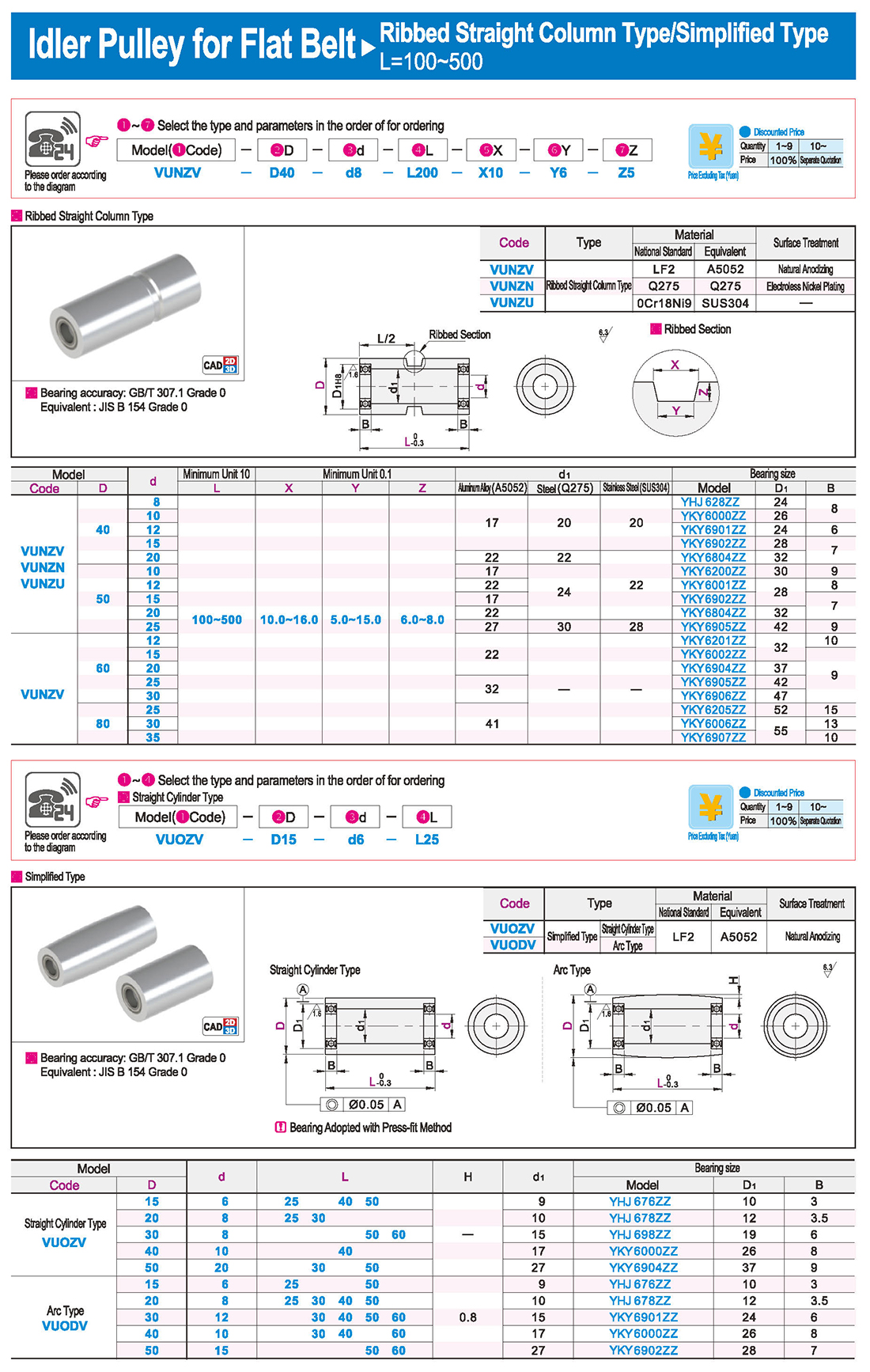

Idler Pulley for Flat Belt

The pulley idler is used in combination with the flat belt round belt in the mechanical equipment to play a power transmission, output, transition, belt tensioning, etc. It can also be called the tensioning wheel when used for belt tensioning.The difference between pulley and idler wheel: pulley and drive shaft are synchronized to play a power output, and the drive shaft through the keyway, screws and other fastening; The idler and shaft are connected by bearings for the driven shaft.

Inquiry Now

Drawings Download

3D model download

Introduction

Specification Table

Download

The difference between pulley and idler wheel: pulley and drive shaft are synchronized to play a power output, and the drive shaft through the keyway, screws and other fastening; The idler and shaft are connected by bearings for the driven shaft.

Classify	Title	Download
