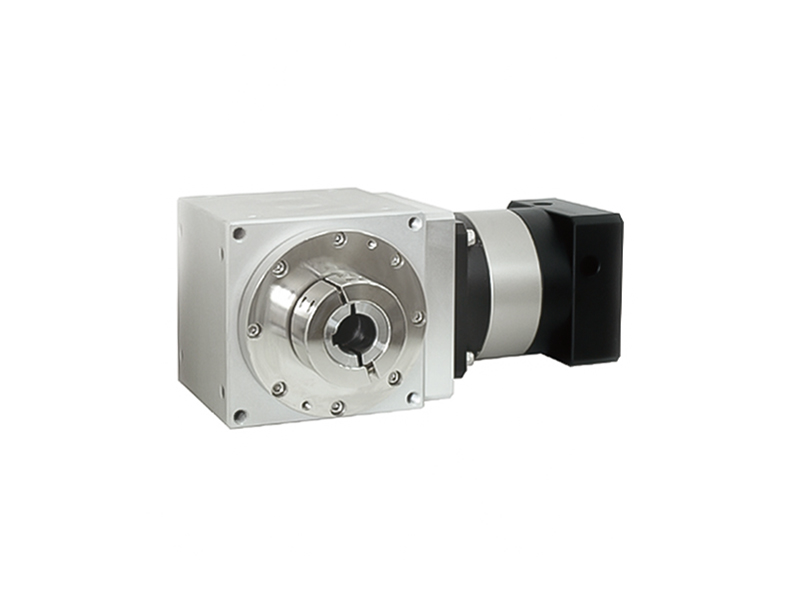

PAW-C-K SINGLE HOLLOW SHAFT KEYED 90 DEGREE GEARBOX

Single hollow shaft keyed steering gearbox

Space-saving with a right angle structure

Wide range ratios from 1:3~1:100

Applicable for all brands of servo motors on the market

High precision and low backlash

Large load capacity

Inquiry Now

Drawings Download

3D model download

Introduction

Specification Table

Download

Product Description

PAW-C-K single hollow shaft keyed 90 degree gearbox:

1. Single hollow shaft keyed steering gearbox

2. Right angle structure, saving space

3. Wide transmission ratio range, from 1:3 to 1:100

4. Suitable for all brands of servo motors on the market

5. High precision, low clearance

6. Large load capacity

PAW-C-K single hollow shaft keyed 90 degree gearbox plays an important role in industrial machinery and equipment. It is widely used, mainly due to its unique structural and functional advantages. Angle reducers, especially angle planetary reducers, can save a lot of space during installation because the motor input shaft and the reducer output shaft are at a right angle of 90 degrees, and the installation angle can be installed at 360 degrees without dead angles, which is very flexible. This kind of reducer is usually used in high-precision fields such as precision machine tools, military equipment, metallurgical equipment, wind power generation equipment, chemical equipment, solar energy, industrial robots, conveying equipment, engineering machinery, textile equipment, packaging equipment, etc.

The advantages of PAW-C-K single hollow shaft keyed 90 degree gearbox include compact structure, high efficiency, high rigidity and ability to withstand high loads. These advantages make the angle planetary reducer widely used in some applications that require high precision and reliability. For example, in the fields of mechanical manufacturing, automation, transportation, etc., the angle planetary reducer has become an indispensable part. In practical applications, it is very important to choose a suitable angle planetary reducer. Many factors need to be considered, such as torque requirements, input-output speed ratio, working environment, etc., to ensure the efficient and reliable operation of mechanical equipment.

Model No.	Unit	Stage	Ratio(i)	PAW055A	PAW070A	PAW085A	PAW105A	PAW125A	PAW125B	PAW150A	PAW150B	PAW180A	PAW180B
Rated Output Torque	Nm	L1	1/3	10	30	40	100	230	100	400	230	900	450
			1/4	15	30	50	150	250	160	500	330	1100	550
			1/5	15	30	50	150	250	160	500	330	1200	550
			1/6	14	30	42	120	230	160	500	290	1100	530
			1/7	14	30	42	120	230	160	500	290	1100	530
			1/10	10	30	40	100	230	100	400	230	900	450
		L2	1/12	10	30	40	100	230	100	400	230	900	450
			1/15	10	30	40	100	230	100	400	230	900	450
			1/16	15	30	50	150	250	160	500	330	1200	550
			1/20	15	30	50	150	250	160	500	330	1200	550
			1/25	15	30	50	150	250	160	500	330	1200	550
			1/28	15	30	50	150	250	160	500	330	1100	550
			1/30	10	30	40	100	230	100	450	330	900	450
			1/35	15	30	50	150	250	160	500	330	1100	550
			1/40	15	30	50	150	250	160	500	330	1100	550
			1/50	15	30	50	150	250	160	500	330	1100	550
			1/60	15	30	50	150	250	160	500	330	1100	550
			1/70	12	30	50	120	250	160	500	290	1100	550
			1/100	10	30	40	100	230	100	400	230	900	450
Max. Output Torque	Nm	L1,L2	3-100	3 Times of Normal Output Torque
Input Speed	Rpm	L1,L2	3-100	3000	3000	3000	3000	3000	3000	3000	3000	3000	3000
Standard Backlash	Arcmin	L1	3-10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10	≤10
Standard Backlash	Arcmin	L2	12-100	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15	≤15
Precision Backlash B2	Arcmin	L1	3-10	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Precision Backlash B2	Arcmin	L2	12-100	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8	≤8
Precision Backlash B1	Arcmin	L1	3-10		≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3	≤3
Precision Backlash B1	Arcmin	L2	12-100		≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5	≤5
Max. Radial Force	N	L1,L2	3-100	1100	3250	3250	5850	9100	9100	14300	14300	19500	19500
Max. Axial Force	N	L1,L2	3-100	650	3250	3250	5850	9100	9100	14300	14300	19500	19500
Efficiency	%	L1	3-10	90%
Efficiency	%	L2	12-100	85%
Weight	Kg	L1	3-10	1.8	2.9	3.8	10.5	15.5	12.5	31	25.5	56.5	37.5
Weight	Kg	L2	12-100	2.1	3.3	4.3	11.2	17	13.2	35.5	28.5	63.5	42
Operating Temp.	℃	L1,L2	3-100	（-10℃~+80℃）
Lubrication		L1,L2	3-100	COMPLEX HV2
Mounting Position		L1,L2	3-100	Any Direction
Noise Level	dB(A)	L1,L2	3-100	≤68	≤68	≤68	≤68	≤70	≤70	≤72	≤72	≤74	≤74
