Drag Chain

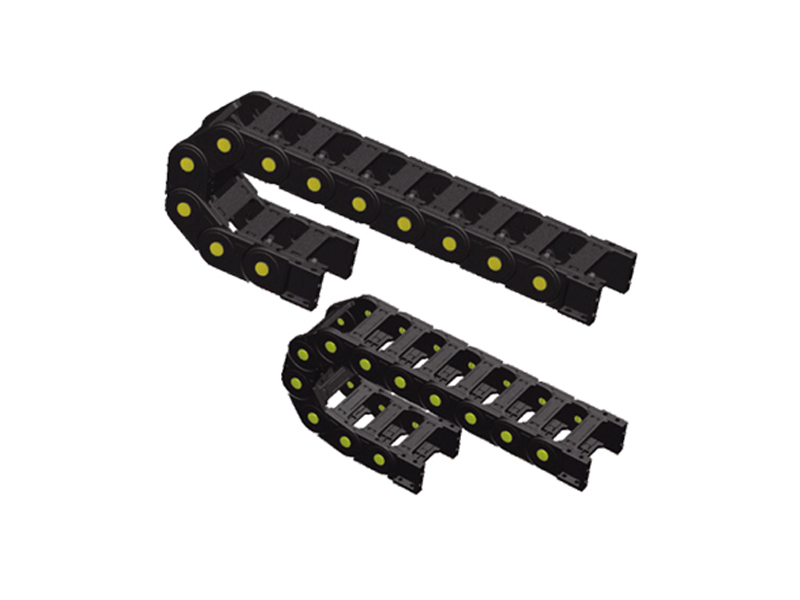

Reinforced Bridge-type Drag Chain

Suitable for use in the reciprocating movement of the occasion, it can play a traction and protection role in the built-in cable, tubing, gas pipe, water pipe, etc., each section of the tow chain can be opened, easy to install and maintain. Low noise, wear resistance, high speed movement. Tow chains have been widely used in CNC machine tools. Electronic equipment, stone machinery, glass machinery, door and window machinery, injection molding machine, manipulator, lifting and transportation equipment, automated warehouse, etc.

Introduction

Specification Table

Download

Suitable for reciprocating motion applications, the drag chain provides traction and protection for internally mounted cables, oil lines, air lines, water lines, etc. Each section of the drag chain can be opened for easy installation and maintenance. It operates with low noise, smooth wear, and is capable of high-speed motion. Drag chains are widely used in CNC machines, electronic equipment, stone processing machinery, glass machinery, door and window machinery, injection molding machines, robots, lifting and transportation equipment, automated warehouses, and other applications.


Relationship between Drag Chain Length and Stroke

Stroke (S): Refers to the maximum distance traveled by the mobile end of the drag chain. The optimal solution is when the fixed end is positioned at the center of the stroke, minimizing the required length of the drag chain.

The formula applies to all applications where the fixed end is located at the center of the stroke, excluding rotational movements and long stroke applications.

Small Semi-closed Drag Chain, Non-openable 10 Series, Semi-closed

Press-to-Open 10 Series with Convenient Operation, Convenient Press-to-Open Type

Small Bridge-type Drag Chain, Outward-opening 15 Series, Vertical Hole, Horizontal Hole

Small Semi-closed Drag Chain, Side-opening 15 Series, Side-opening, Data

Small Press-to-Open 15 Series with Convenient Operation

Small Semi-closed Drag Chain, Internal-opening 18 Series, Compatible with Divider Plates

Bridge-type Drag Chain, Outward-opening 18 Series

Small Press-to-Open 18 Series with Convenient Operation

Small Bridge-type Drag Chain, Double-side Opening 25 Series

Small Closed Drag Chain, Double-side Opening 25 Series, Closed

Reinforced Bridge-type Drag Chain, Double-side Opening 25 Series, Colorful Bridge-type, Special for Crossbeam, N indicates Universal, Y indicates Divider Block

Reinforced Closed Drag Chain, Double-side Opening 25 Series, Colorful Closed

Heavy-duty Bridge-type Drag Chain, Double-side Opening 35 Series

Heavy-duty Closed Drag Chain, Double-side Opening 35 Series

Silent Bridge-type Drag Chain, Double-side Opening 25 Series, Silent Bridge-type

Silent Enclosed Drag Chain, Double-side Opening 25 Series, Silent Enclosure

Features: Convenient and quick cabling, small pitch, lightweight, low noise operation (dependent on speed), wear resistance, corrosion resistance, suitable for high-speed applications.
