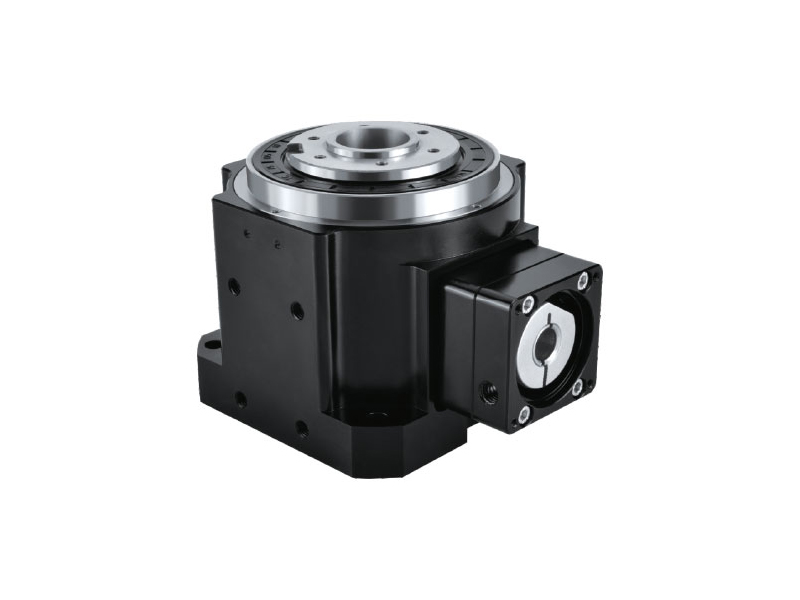

RM Right-angle Hollow Rotating Platform

Solid body structure and small in volume

With power split, multi-tooth meshing features

Maximum input power up to 10kw

The ratio of ZR speed reducer is small and it has only two ratios, 1:3 and 1:2

Low rotating backlash less than 10 sec

Input and output shaft are at angle of 90 degree

Inquiry Now

Drawings Download

3D model download

Introduction

Specification Table

Download

Product Description

RM right angle hollow rotary platform:

1. The main structure is strong and small in size

2. It has the characteristics of power splitting and multi-tooth meshing

3. The maximum input power can reach 10kw

4. The speed ratio of ZR reducer is small, only 1:3 and 1:2

5. The rotation backlash is small, less than 10 seconds

6. The input and output shafts are at a 90-degree angle

RM right angle hollow rotary platform is suitable for a variety of industries and applications, including: printing and paper processing; CNC machine tool processing equipment; military and aerospace equipment; semiconductor wafer manufacturing; coating and film processing; high-speed electronic assembly; injection molding, packaging; CNC plasma flame cutting equipment; automated packaging equipment, printing machinery.
