Voice Coil Motor (VCM) is a special form of direct drive motor with characteristics such as simple structure, small size, high speed, and fast acceleration response. The following is a detailed analysis of voice coil motors:
1、 Working principle
The working principle of a voice coil motor is mainly based on the Ampere force principle, which means that an electrified conductor will be subjected to force in a magnetic field. Specifically, voice coil motors are mainly composed of coils, permanent magnets, and supporting structures. A permanent magnet generates a fixed magnetic field, and the coil is placed in this magnetic field. When a current passes through a coil, according to Ampere's law of force, an electrified conductor will be subjected to a force in a magnetic field. The magnitude of this force is proportional to the current passing through the coil, the strength of the magnetic field, and the effective length of the coil in the magnetic field. By controlling the magnitude and direction of the current, the speed and direction of the coil's movement can be precisely controlled.
2、 Type
Voice coil motors can be classified into various types based on their motion mode and application scenarios, mainly including:

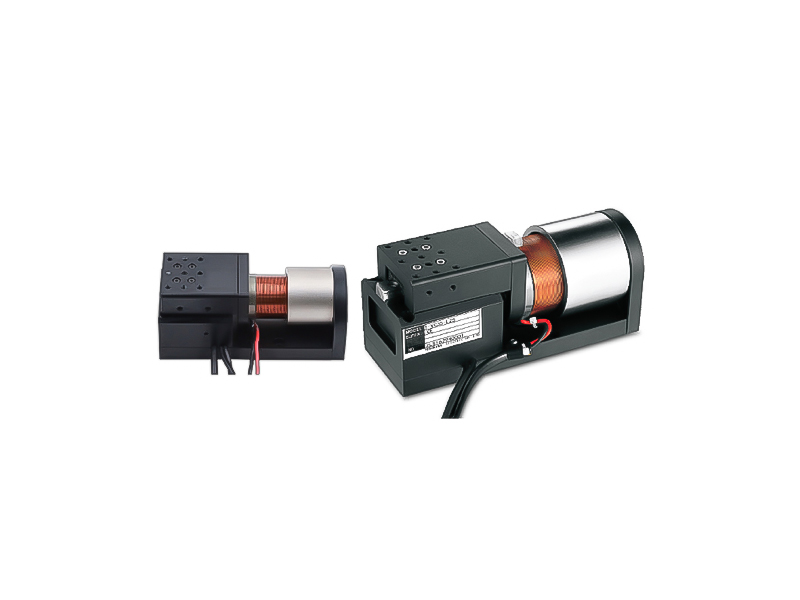

Linear voice coil motor: The most common type of voice coil motor, which operates in a linear motion. Widely used in fields such as hard disk drives and precision positioning systems.
Rotating voice coil motor: The motion mode is rotational motion, usually used in fields such as optical equipment and robots.
Voice coil servo motor: characterized by high precision and high response speed, usually used in precision control systems.
Voice coil torque motor: It has a large output torque and is usually used in situations that require a large torque.
3、 Characteristics
High precision: Voice coil motors have high positioning accuracy and repeatability, which can meet the requirements of high-precision applications.
High response speed: The voice coil motor has a fast response speed and can quickly respond to control signals, achieving fast movement.
High reliability: The voice coil motor has a simple structure, low failure rate, and high reliability.
Low noise: The voice coil motor has low operating noise and is suitable for use in situations that require low noise.
Low energy consumption: The energy consumption of voice coil motors is relatively low, which can reduce the energy consumption of the system.
