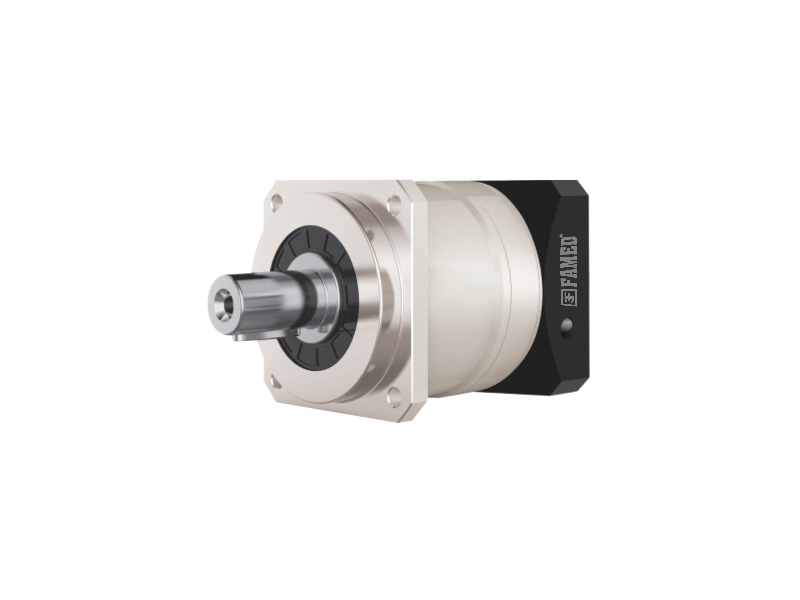

VRB High Precision Planetary Gearbox

Quietly operation of VRB speed reducer thanks to the use of helical gears.

High precision positioning for backlash smaller than 3 arc.min.

High rigidity and high toque of 3F VRB precision gearbox due to the use of integrated roller bearing.

It is convenient to install our servo gearbox on any brand of motor with any size.

The use of high quality lubrication grease ensures free of maintenance and no grease leakage.

Inquiry Now

Drawings Download

3D model download

Introduction

Specification Table

Download

Product Description

VRB series precision planetary gear reducer provides high cost performance, wide application, economical and practical, long life and other advantages. In the application of servo control, it exerts a good servo rigidity effect, accurate positioning control, and has medium-term stability on the operation platform. Low backlash, high efficiency, high input speed, high input torque, smooth operation, low noise and other characteristics, the appearance and structure design are light and small. It uses lubricating oil that does not need to be replaced for life, and can be operated without maintenance no matter where it is installed.

The fully enclosed design has an IP65 degree of protection, so it can be used even in poor working environments. VRB can provide 9 frame specifications; the backlash is 3 arc minutes; the maximum torque can reach 1200NM; the maximum radial load capacity is 12400N; the ratio of 4:1 to 1000:1 can be provided; any kind of motor can be connected; work The lifespan is about 20,000 hours.

VRB series precision planetary gear reducers are suitable for a variety of industries and applications, including: printing and paper processing; CNC machine tool processing equipment; military and aerospace equipment; semiconductor wafer manufacturing; coating and film processing; high-speed electronic assembly; injection casting, Packaging; CNC plasma flame cutting equipment; automated packaging equipment, printing machinery.

Model No.	Unit	Stage	Ratio	VRB042	VRB060	VRB090	VRB115	VRB142	VRB180	VRB220
Rated Output Torque	Nm	1	3	20	55	130	208	342	588	1140
			4	19	50	140	290	542	1050	1700
			5	22	60	160	330	650	1200	2000
			6	20	55	150	310	600	1100	1900
			7	19	50	140	300	550	1100	1800
			8	17	45	120	260	500	1000	1600
			9	14	40	100	230	450	900	1500
			10	14	40	100	230	450	900	1500
		2	15	20	55	130	208	342	588	1140
			20	19	50	140	290	542	1050	1700
			25	22	60	160	330	650	1200	2000
			30	20	55	150	310	600	1100	1900
			35	19	50	140	300	550	1100	1800
			40	17	45	120	260	500	1000	1600
			45	14	40	100	230	450	900	1500
			50	22	60	160	330	650	1200	2000
			60	20	55	150	310	600	1100	1900
			70	19	50	140	300	550	1100	1800
			80	17	45	120	260	500	1000	1600
			90	14	40	100	230	450	900	1500
			100	14	40	100	230	450	900	1500
Max. Output Torque	Nm	1,2	3-100	3 Times of Normal Output Torque
Rated Input Speed	Rpm	1,2	3-100	5000	5000	4000	4000	3000	3000	2000
Max. Input Speed	Rpm	1,2	3-100	10000	10000	8000	8000	6000	6000	4000
Micro Backlash P0	Arcmin	1	3-10	≤2	≤2	≤2	≤2	≤2	≤2	≤2
Micro Backlash P0	Arcmin	2	12-100	≤4	≤4	≤4	≤4	≤4	≤4	≤4
Precision Backlash P1	Arcmin	1	3-10	≤4	≤4	≤4	≤4	≤4	≤4	≤4
Precision Backlash P1	Arcmin	2	12-100	≤6	≤6	≤6	≤6	≤6	≤6	≤6
Torsional Rigidity	Nm/arcmin	1,2	3-100	3	7	14	25	50	145	225
Max. Radial Force	N	1,2	3-100	780	1530	3250	6700	9400	14500	50000
Max. Axial Force	N	1,2	3-100	350	630	1300	3000	4000	6200	35000
Service Life	Hr	1,2	3-100	20000hrs
Efficiency	%	1	3-10	≥97%
Efficiency	%	2	12-100	≥94%
Weight	Kg	1	3-10	0.5	1.3	3.3	7.8	15	28	52
Weight	Kg	2	12-100	0.8	1.48	3.9	9.6	18.9	33	66
Operating Temp.	℃	1,2	3-100	（-15℃~+90℃）
Lubrication		1,2	3-100	Synthetic Grease
Protection Class		1,2	3-100	IP65
Mounting Position		1,2	3-100	Any Direction
Noise Level	dB(A)	1,2	3-100	≤56	≤58	≤60	≤63	≤65	≤67	≤70

Moment of Inertia

Model No.	Unit	Stage	Ratio	VRB042	VRB060	VRB090	VRB115	VRB142	VRB180	VRB220
Moment of Inertia	kg.cm2	1	3	0.03	0.16	0.61	3.25	9.21	28.98	69.61
			4	0.03	0.14	0.48	2.74	7.54	23.67	54.37
			5	0.03	0.13	0.47	2.71	7.42	23.29	53.27
			6	0.03	0.13	0.45	2.65	7.25	22.75	51.72
			7	0.03	0.13	0.45	2.62	7.14	22.48	50.97
			8	0.03	0.13	0.44	2.58	7.07	22.59	50.84
			9	0.03	0.13	0.44	2.57	7.04	22.53	50.63
			10	0.03	0.13	0.44	2.57	7.03	22.51	50.56
		2	12-40	0.03	0.03	0.13	0.47	2.71	7.42	23.29
		2	50-100	0.03	0.03	0.13	0.44	2.57	7.03	22.51
